            Your Position: Home > Product > CNC turning machine

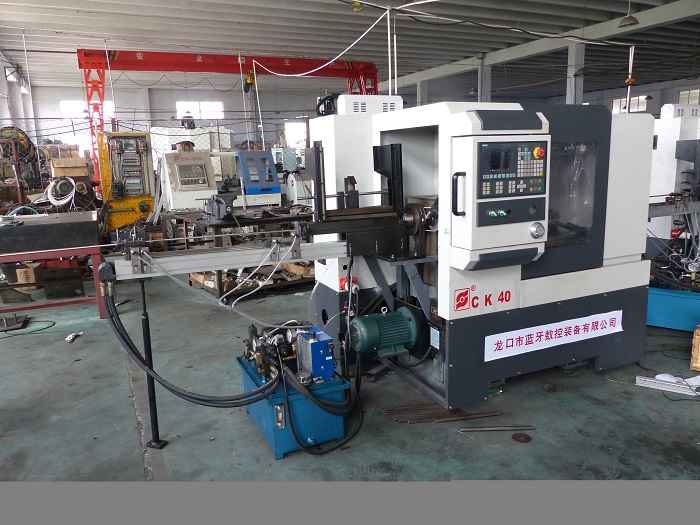

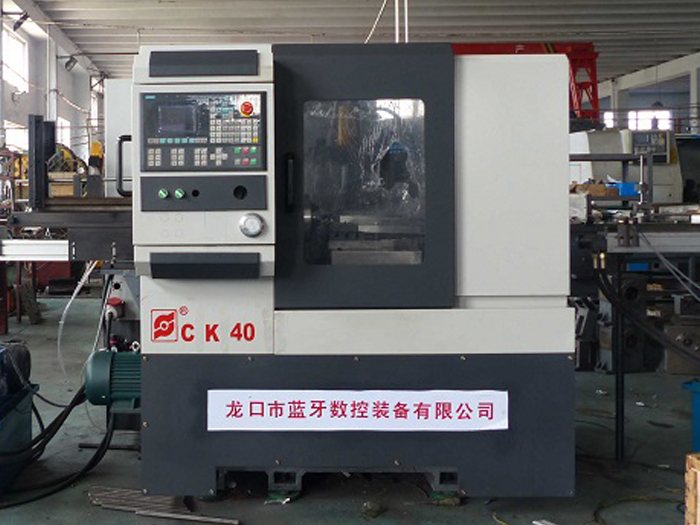

            CK-40 CNC turning machine

            Update: 2015/7/23      View:
            • Brand:    Bluetooth
            • Type:    CK-50
            • Price:     RMB
            • Promotion:     RMB ( 0 Customers Bought)
            • Order Online   Add to favorites
            Introduction

            CK-50 CNC turning machine

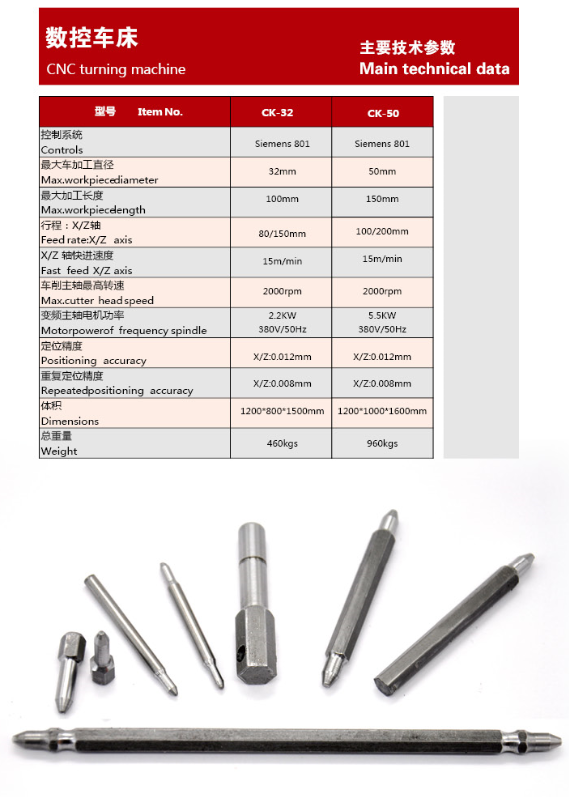

            Main technical data

             Controls

             Siemens801
             Max.workpiecediameter  50mm
             Max.workpiecediameter  150mm
             Feed rate:X/Z axis  100/200mm
             Fast feed X/Z axis  15m/min
             Max.cutter head speed  2000rpm
             Motorpowerof frequency spindle  5.5KW 380V/50Hz
             Positioning accuracy  X/Z:0.016mm
             Repeatedpositioning accuracy  X/Z:0.008mm
             Dimensions  1200*1000*1600mm
             Weight  960kgs

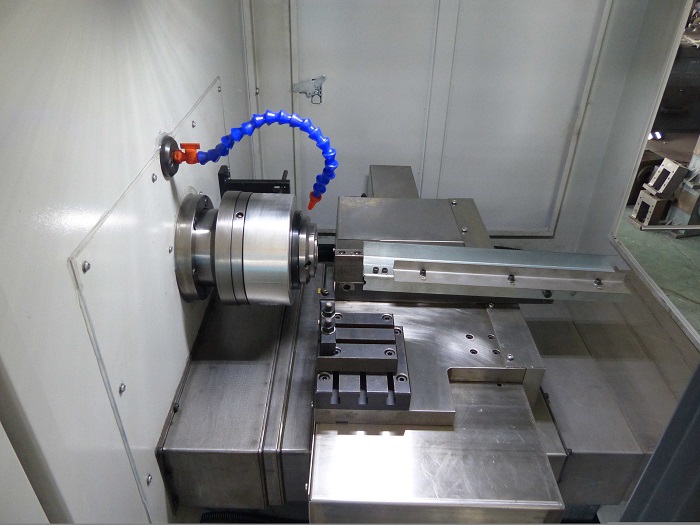

            CK series CNC lathe can turn workpiece with high efficiency and precision. And have functions of drilling and threading. The lathe is equipped vibration plate which can up and down the workpieces automatically. And there are CNC systerms optional.


            【Service and Technical support

            1、The structure optimization of high strength, high rigidity Meehanite cast iron body fully absorb the cutting vibration, ensure the stability of the machining accuracy of machine tool. Each axis of motion with high precision linear guide and ball screw, imported precision bearing group. The machine can be equipped with automatic feeder, automatic feeder, automatic chip removal, automatic door and all kinds of additional facilities, and flexible production lines, to achieve automatic processing
            2、The CNC machine can finish turning,milling etc much more process by once clamping on the one end of the bit.

            3、Workpiece will be finish turning ,milling and rubdown basis on once clamping with high efficiency and precision.Then to avoid the accumulated error of the traditional process's multiple clamping.

            4、All machine tool system and other configuration according to customer requirements and selection.
            5、 the price of the machine tool for processing standard price, customer demand for different, the final price is determined according to the actual situation.


             Pre-After-sales service

            Before sale: to analysis of the drawings, process efficiency, according to customer requirements to provide proof. To provide complete solutions for customers

            Sales: binding machine, to provide free technical training, customer Commissioner learning operation, the equipment installation and debugging, you can smooth the normal operation of the production
